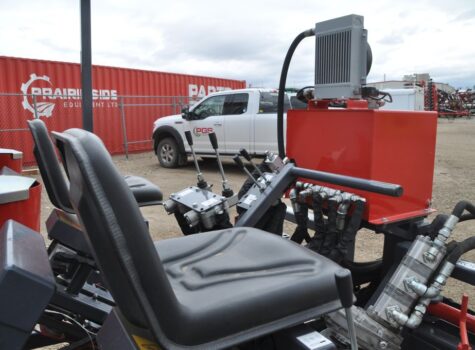

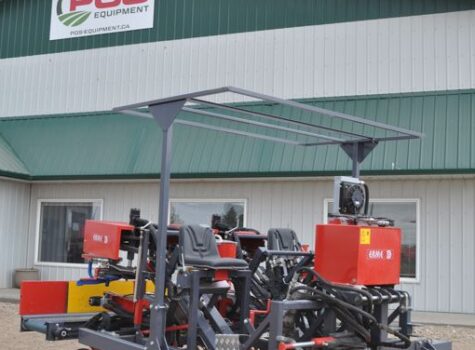

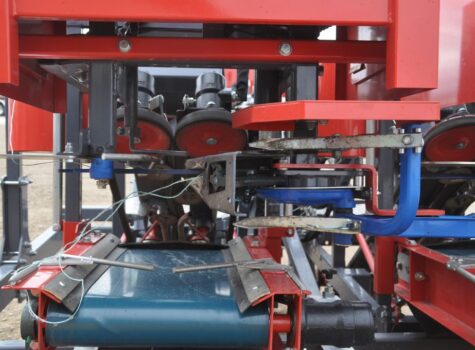

This two-row harvester binder machine is carried behind the tractor with a multi-position three-point linkage. Minimal distance between rows is 45 cm. System includes: - two front leaf lifters - shoe for lifting garlic heads, manual depth adjustment - two harvesting belts, manual height adjustment - vibration system to eliminate soil, with knob to adjust speed - safety pressure valve system in case of blockage of belts - binding unit with several adjustments (size of bundles/tying height) - transfer conveyor - lateral guiding of rows during harvest - hydraulic ram on main frame/ rear side conveyor belt to drop bundles to one side - drive system- two hydraulic pumps with a multiplicator mounted directly on PTO shaft (540rpm)/ hydraulic oil tank with cooling system Nominal speeed: 4 to 6 km/h Tractor power: 70 hp Harvest output: 2 ha (5 ac) in 8 hours Length: 3.4 m Width: 2.0 m Height: 2.0 m Empty weight: 1430 kg Give us a call at 403-223-5380


Groups: Garlic Machines | Garlic Harvesters
Brands: ERME
Service Number: 10550
Serial Number: 61523
Condition: New
Build Year: 2019
Type: RL2
